C5110/EDGE 7WB/G+ one line video kit with Wifi call forwarding
Reference : C5110/EDGE 7WB/G+
Product code: 12305113B
EAN code : 8429898032368

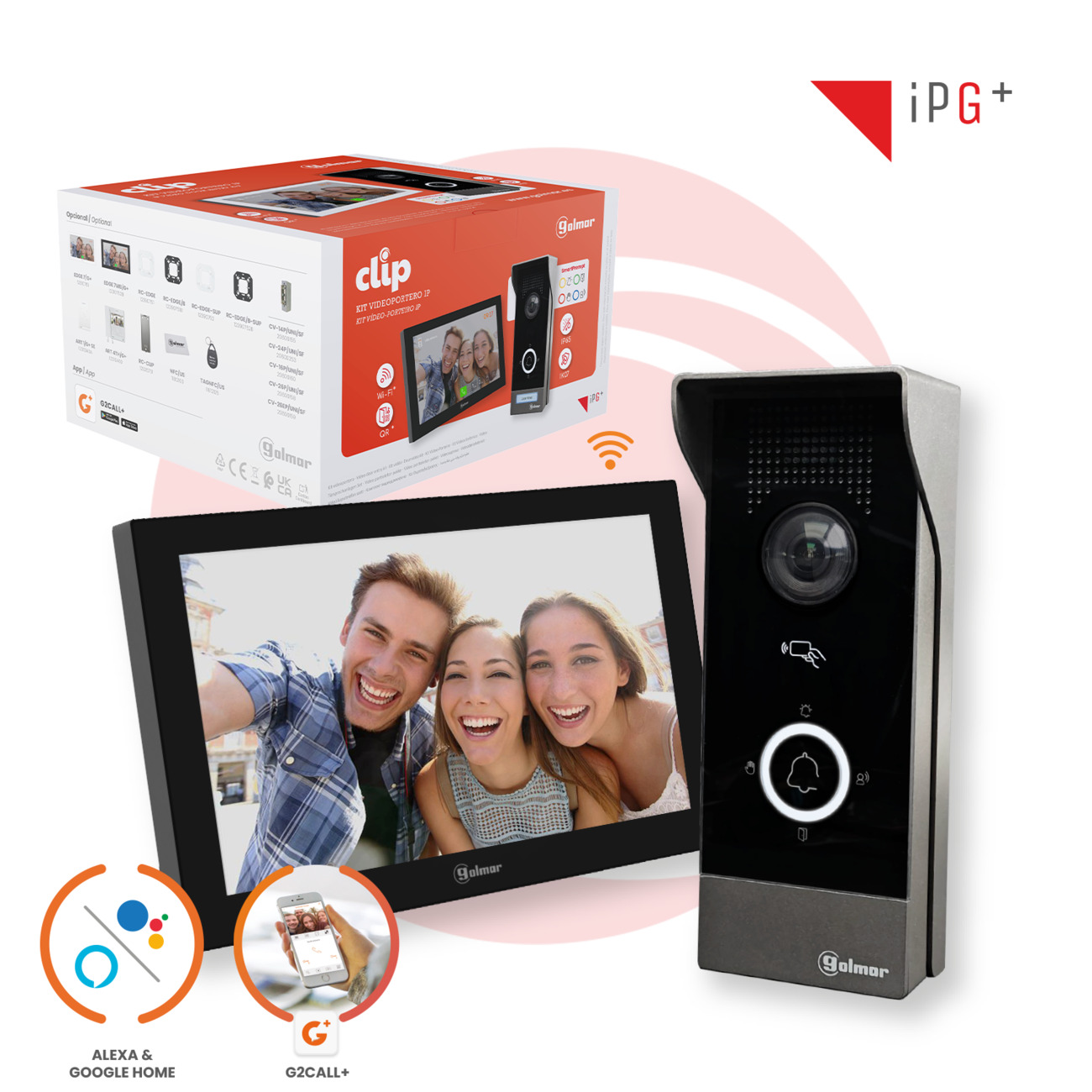

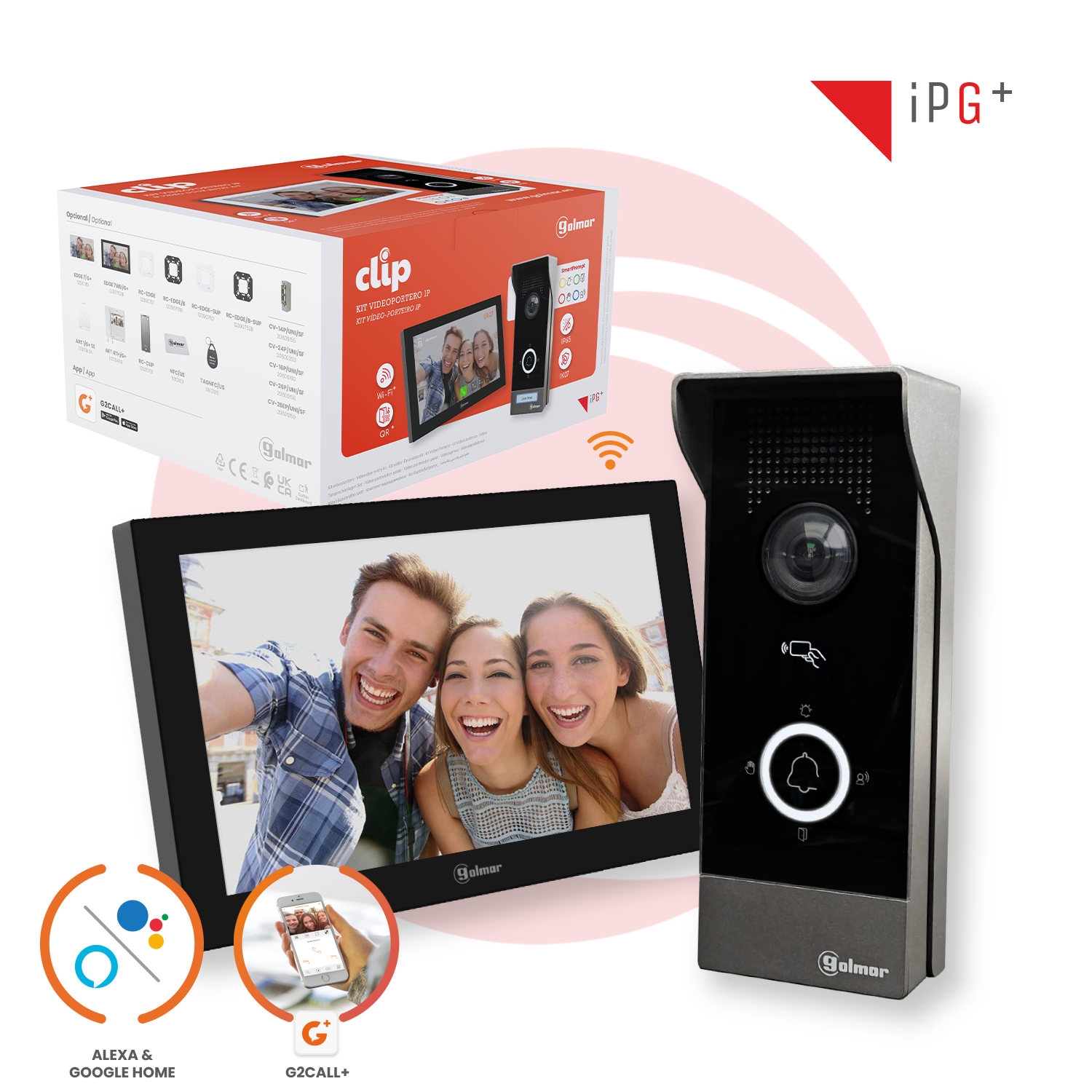

CLIP IP G+ video door panel kit with call forwarding via Wi-Fi
- CLIP/G+ door panel with 1 call button.
- Monitor EDGE 7WB/G+ 7" hands free with integrated Wi-Fi
- PoE Switch SW-104M
More information
MONITOR EDGE 7WB/G+
Dimensions: 179 (W) x 116 (H) x 21 (D) mm.
G2CALL+ APP
This monitor allows calls to be forwarded to the G2Call+ App, adding the following features.
Switch PoE 104-M
Up to 6 monitors in the same home.
Door opener not included. Recommended:
CV-14P/UNI/SF (20600155)
CV-24P/UNI/SF (20600253)
CV-16P/UNI/SF (20600160)
CV-26P/UNI/SF (20600158)
- Hands-free monitor for surface mounting in white finish.
- 7" capacitive touchscreen.
- High-efficiency speakers.
- Secure audio, video and door-opening communications.
- Spy camera, auto-on, Doctor mode and Do Not Disturb functions.
- Voicemail function, so it can store a message if you do not answer.
- Selective intercom communication with other units in the apartment.
- Customisable ringtones.
- Customisation of the monitor's background.
- Connection to the doorbell push-button, eliminating the need to use the doorbell.
- Auxiliary chime output.
- Image memory, storing photos or videos in internal storage (SD card option for extended memory).
- Easy pairing of the monitor with the G2Call+ app via on-screen QR code.
Dimensions: 179 (W) x 116 (H) x 21 (D) mm.
G2CALL+ APP
This monitor allows calls to be forwarded to the G2Call+ App, adding the following features.
- Call forwarding and auto-switch-on function via the app.
- Remote door opening.
- Door opening via QR codes generated by the app.
- Integration with Alexa
- Integration with Google Home.
- Viewing of CCTV cameras linked to the monitor.
Switch PoE 104-M
Up to 6 monitors in the same home.
Door opener not included. Recommended:
CV-14P/UNI/SF (20600155)
CV-24P/UNI/SF (20600253)
CV-16P/UNI/SF (20600160)
CV-26P/UNI/SF (20600158)
CLIP PANEL
- Graphite coloured Zamak alloy housing.
- Black coloured acrylic front.
- 2MPx CMOS camera with 150º wide angle optics.
- IK07 anti-vandalism and IP65 weatherproof rating.
- Prompt messages and call button with SmartPrompt' luminous indication of the different system statuses.
- 13.56MHz RFID proximity reade supporting up to 2,000 cards, with Wiegand26 and RS485 outputs.
- Door opening via QR codes (exclusively with Wi-Fi monitors).
- 12Vcc output for activating one door.
- Designed for use with 12 Vdc electric door strikes.
- Compatible with 48V PoE switches and connection via RJ-45 connector, with the option of local 12 Vdc power supply.
- Surface mounting with rain shield included.
