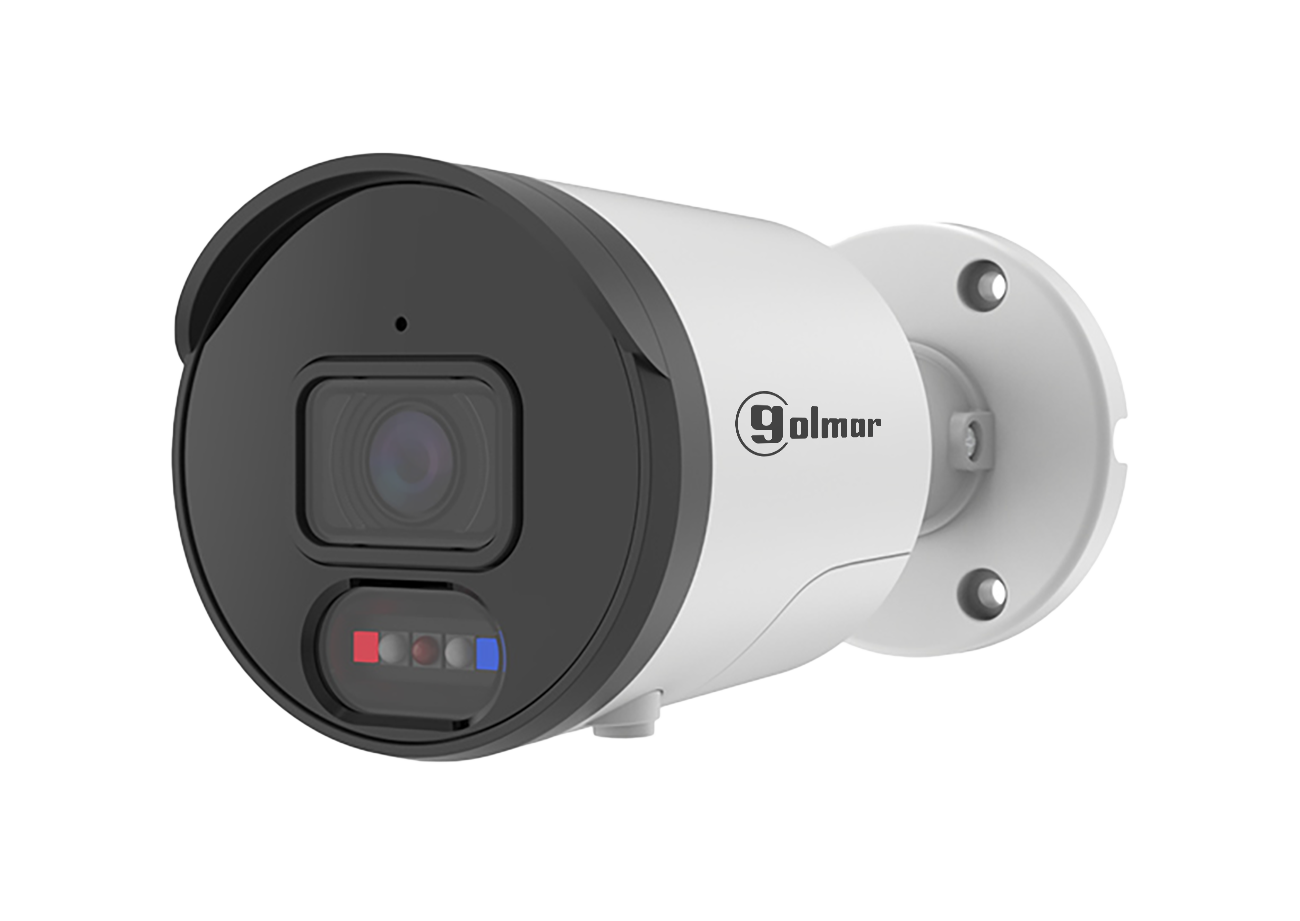

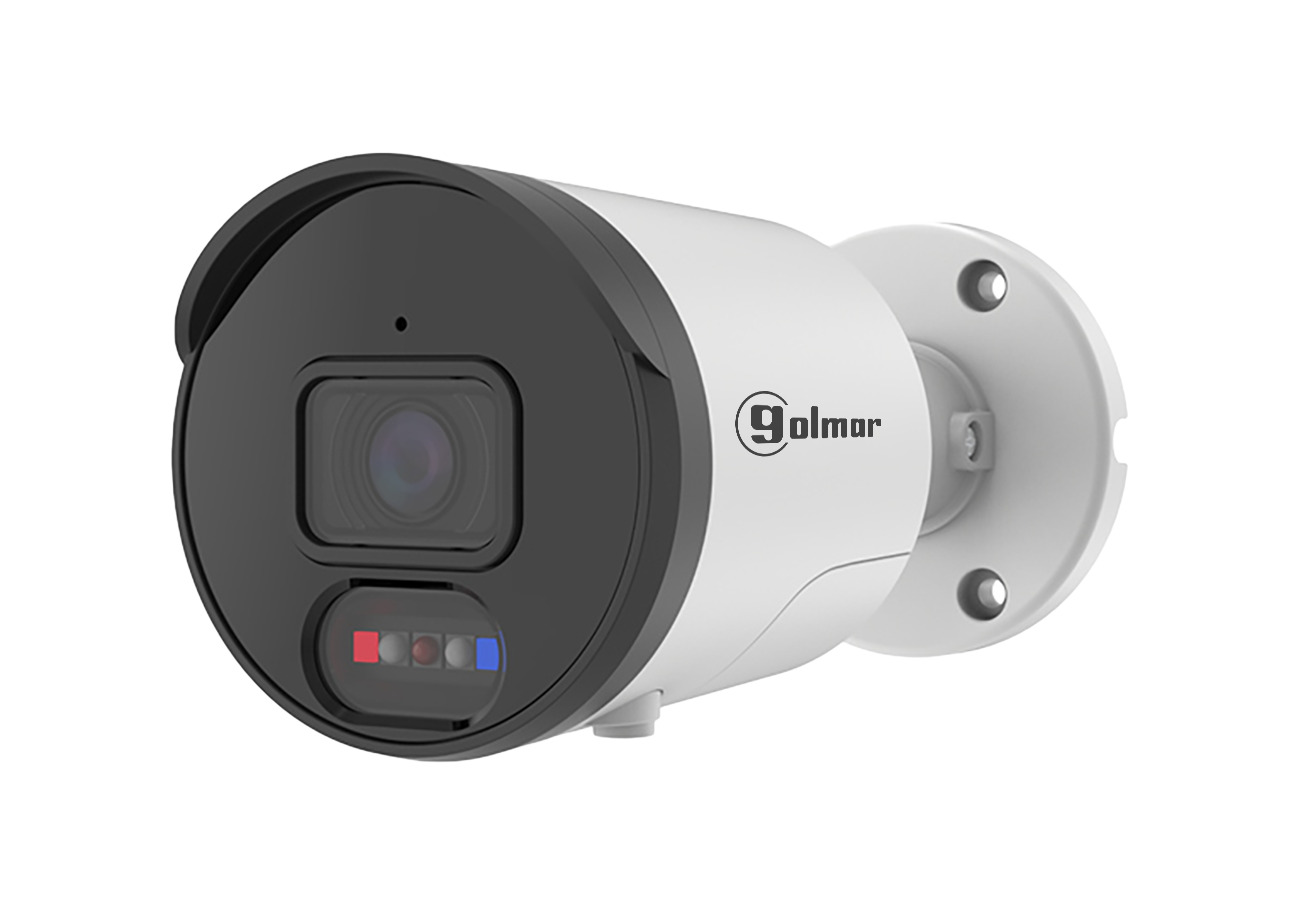

CIP-21B4D 4Mpx full color camera with 2.8mm lens
Reference : CIP-21B4D
Product code: 31692053
EAN code : 8429898026206
- 4Mpx FULL COLOR bullet with 2.8mm lense
- 1/3" progressive CMOS sensor
- H.265 / H.264 compression
- Proprietary protocol / Onvif
- 2.8mm fixed lense with 95° horizontal angle of view
- 25m range infrared illumination
- 20m visible white light illumination
- IP66 protection rating
- Micro SD card slot
- Built-in microphone and speaker
- Red and blue deterrent light
- Compatible with junction box C-BASE01, C-BASE02 and C-BASE05
- Dimensions: 70(Ø) x 152(D) mm
More information
| Specifications | |
|---|---|
| Type | Bullet |
| Technology | IP |
| Image sensor | 1/3" progressive CMOS |
| Max. Resolution | 4Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Wall |
| Lense | Fixed |
| Focal length | 2,8 mm |
| Max. Aperture ratio | F 1,0 |
| Horizontal field of view (º) | 95 |
| Vertical field of view (º) | 51 |
| Minimum illumination (lux) | Color 0.002 Lux (F1.0,AGC ON) B/W 0 lux @ IR ON |
| Night vision mode | Full Color |
| White light distance (m) | 20 |
| IR distance max. (m) | 25 |
| Additional functions | AWB,BLC,AES,3D-DNR,D-WDR |
| Bitrate | 512Kbps ~ 4Mbps |
| Main Stream (FPS) | 25 fps @ 4Mpx (2560 x 1140) |
| Sub Stream (FPS) | 25 fps @ VGA (640 x 480) |
| Video compression | H.264,H.265 |
| Video Analysis | LCD,PID |
| Internal storage | Yes (max 256Gb) |
| Network interface | RJ45 |
| Built-in microphone | Yes |
| Built-in speaker | Yes |
| Remote Access / App | Web,App GolmarView,VMS Pro |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS |
| Degree of protection (IP) | 66 |
| Material | Aluminium |
| Maximum working temperature (ºC) | 60 |
| Minimum working temperature (ºC) | -35 |
| Relative humidity work (max.) | 95% |
| Input voltage (V) | 12Vcc,PoE |
| Included power supply | No |
| Rest consumption (W) | 1.2 |
| Max. consumption (W) | 5 |
| Dimensions - Diameter (mm) | 70 |
| Dimensions - Deep (mm) | 152 |
| Weight (gr.) | 282 |
| Certifications | CE, RoHS |
