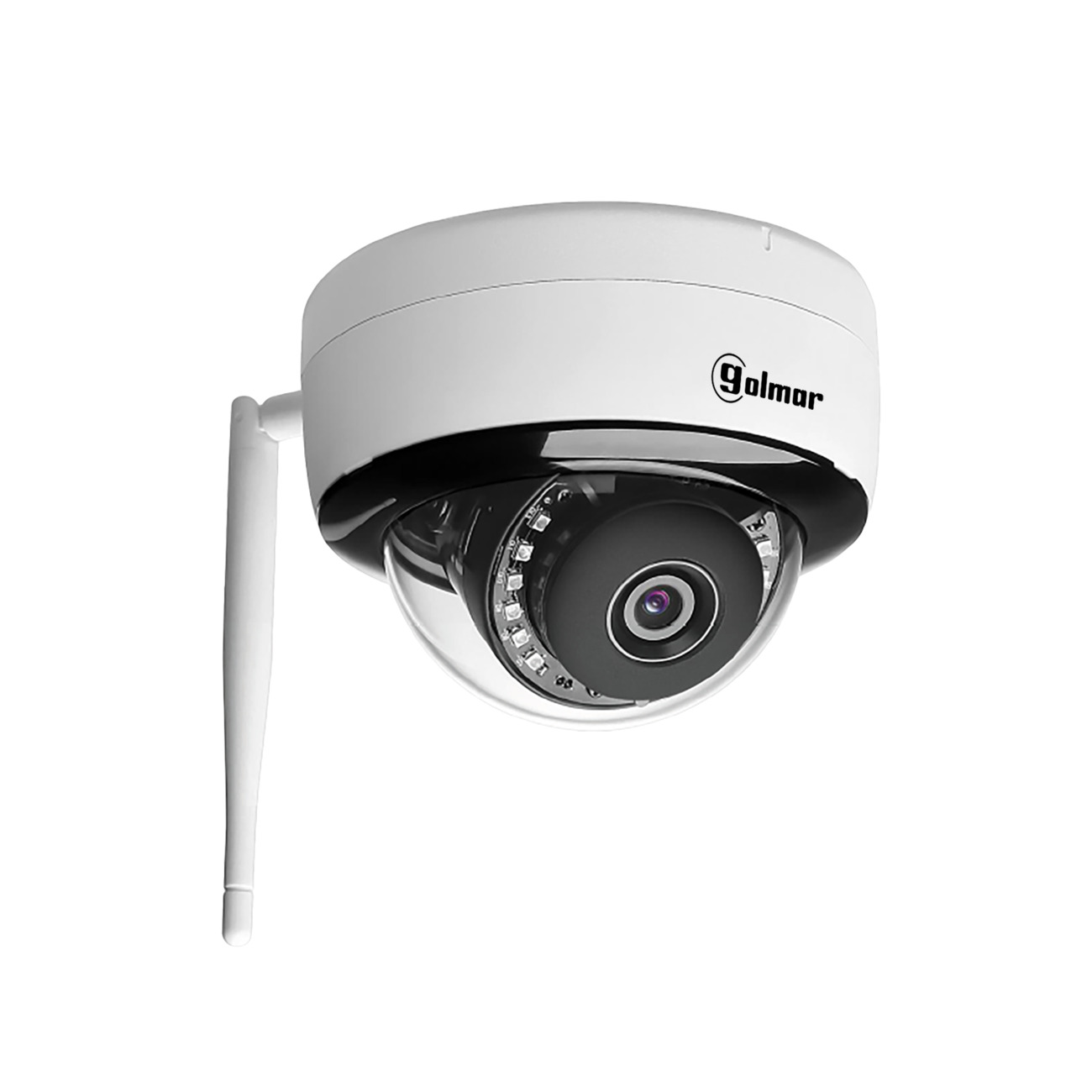

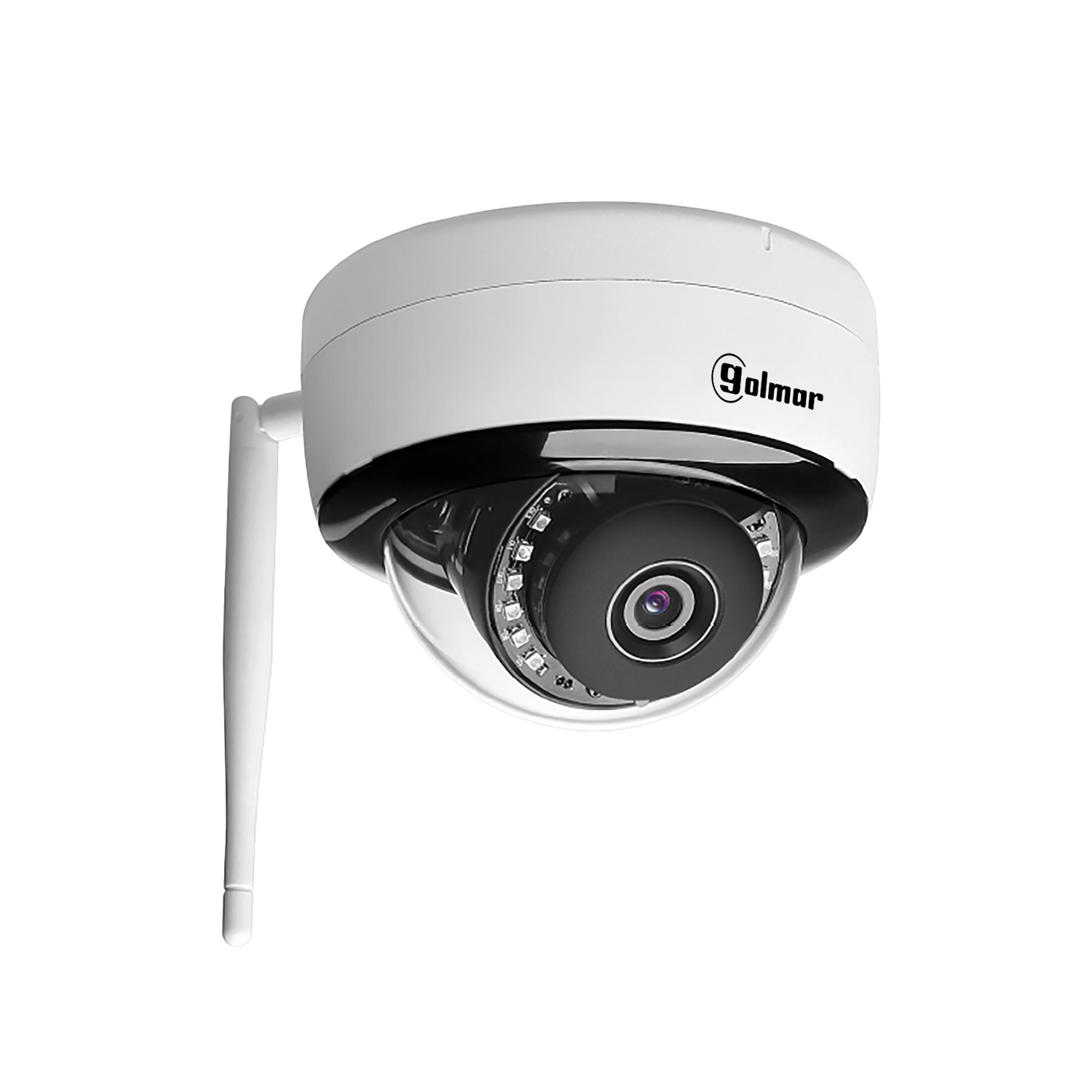

CIP-31D5W 5Mpx Wi-Fi camera with 3.6mm lens
Reference : CIP-31D5W
Product code: 31600990
EAN code : 8429898028217
- Wi-Fi IP dome with 3.6mm lens
- 1/2.7" CMOS sensor with 5Mpx resolution
- 3.6mm fixed optics
- Digital zoom in App
- Infrared illumination with 20m range
- Built-in microphone
- Detection of people and vehicles
- App notifications
- Micro SD card slot (max. 128Gb)
- 2.4/5.8 GHz Wi-Fi and Ethernet connectivity
- IP66 protection rating
- ONVIF 2.4 compatibility
- Compatible with CamHiPro App
- Compatible with CMS HiP2P
- 12Vdc power supply included
- Dimensions: 128(Ø) x 98(D) mm
More information
| Specifications | |
|---|---|
| Type | Dome |
| Technology | IP |
| Max. Resolution | 5Mpx |
| Images by sec. (FPS) | 25 |
| Colour | White |
| Mounting | Ceiling |
| Lense | Fixed |
| Focal length | 3,6mm |
| Horizontal field of view (º) | 86 |
| Vertical field of view (º) | 46 |
| Night vision mode | Day/Night |
| IR distance max. (m) | 20 |
| WDR | No |
| Additional functions | AWB,BLC,AES,3D-DNR |
| Video compression | H.264 |
| Video Analysis | PD,VD |
| Internal storage | Yes (max 128Gb) |
| Network interface | RJ45 |
| Built-in microphone | Yes |
| Built-in speaker | No |
| Integrated WiFi | Yes |
| Remote Access / App | Web,CamHiPro |
| Degree of protection (IP) | 66 |
| Material | Aluminium + ABS |
| Maximum working temperature (ºC) | 55 |
| Minimum working temperature (ºC) | -20 |
| Relative humidity work (max.) | 85 |
| Relative humidity Work (min.) | 10 |
| Input voltage (V) | 12Vcc |
| Included power supply | Yes |
| Dimensions - High (mm) | 98 |
| Dimensions - Diameter (mm) | 128 |
| Weight (gr.) | 700 |
| Certifications | CE, RoHS |
