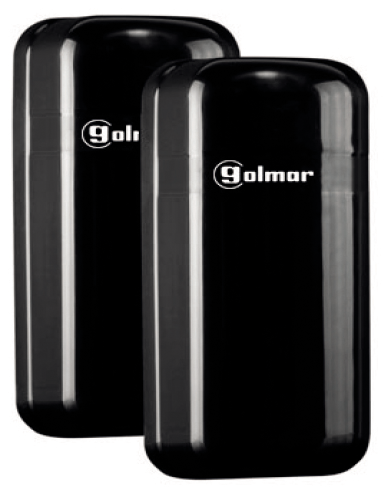

Outdoor Dual-Beam Infrared Barrier
Reference : EL60RT2PH-120
Product code: 21050060
EAN code : 8429898024721
- Range: 120,m
- Includes one transmitter unit and one receiver unit
- Dual-beam infrared technology (bi-directional) with 35,mm lenses
- Optical synchronization with four different channels
- Visible LED indicator up to 200,m in daylight and high-power buzzer for single-person alignment
- Beam adjustment angle: 20º (V), 180º (H)
- Alarm output on the receiver via NC relay
- Tamper protection on the covers
- Fog inhibition output
- Outdoor installation
- Protection rating: IP65
- Includes wall mount bracket and pole-mounting straps
More information
| Specifications | |
|---|---|
| Technology | Wired |
| Type | IR Barrier |
| Relay contacts | Yes |
| Type Function | by control panel |
| Use | Outdoor |
| Dimensions - High (mm) | 185 |
| Dimensions - Width (mm) | 78 |
| Dimensions - Deep (mm) | 78 |
