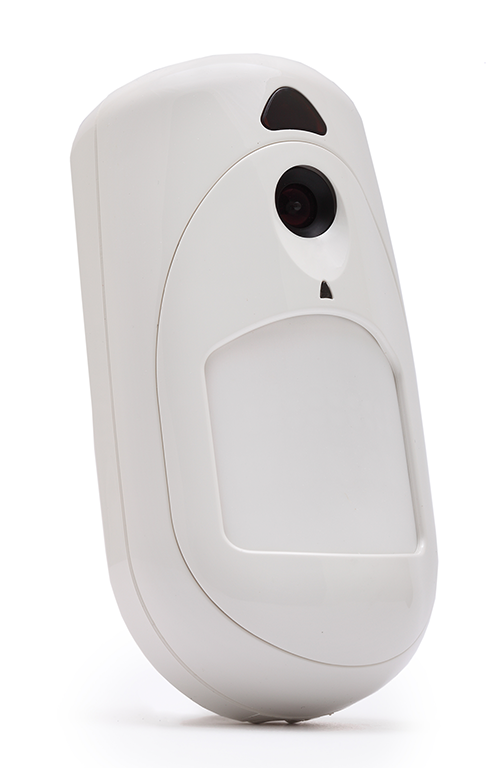

Grade 2 Wireless Infrared Detector with Camera for LightSYS+ Control Panel
Reference : PIRCAM95
Product code: RWX95CM8000
EAN code : 848584008087
- Infrared Detection Technology
- Wide-angle pigmented lens for protection against white light
- Detection range: 12 meters
- Tamper protection, suitable for corner installation
- Digital detector with true temperature compensation
- Camera resolution: VGA or QVGA
- Equipped with 2 RF channels: one for control and one for image transmission
- Indoor installation
- Recommended installation height: 2.20 to 2.50 meters
- Requires wireless module RVR432EW
- Includes two 3V lithium batteries, type CR123
- Dimensions: 68 mm (W) x 132 mm (H) x 56 mm (D)
More information
| Specifications | |
|---|---|
| Installation | No wires |
| Technology | Via Radio |
| Serie | LightSys + |
| Type | IR |
| Action indicator output | No |
| Relay contacts | No |
| Incorporates base | No |
| Type Function | by control panel |
| Use | Indoor |
| Grade of security | Grade 2 |
| Dimensions - High (mm) | 132 |
| Dimensions - Width (mm) | 68 |
| Dimensions - Deep (mm) | 56 |
