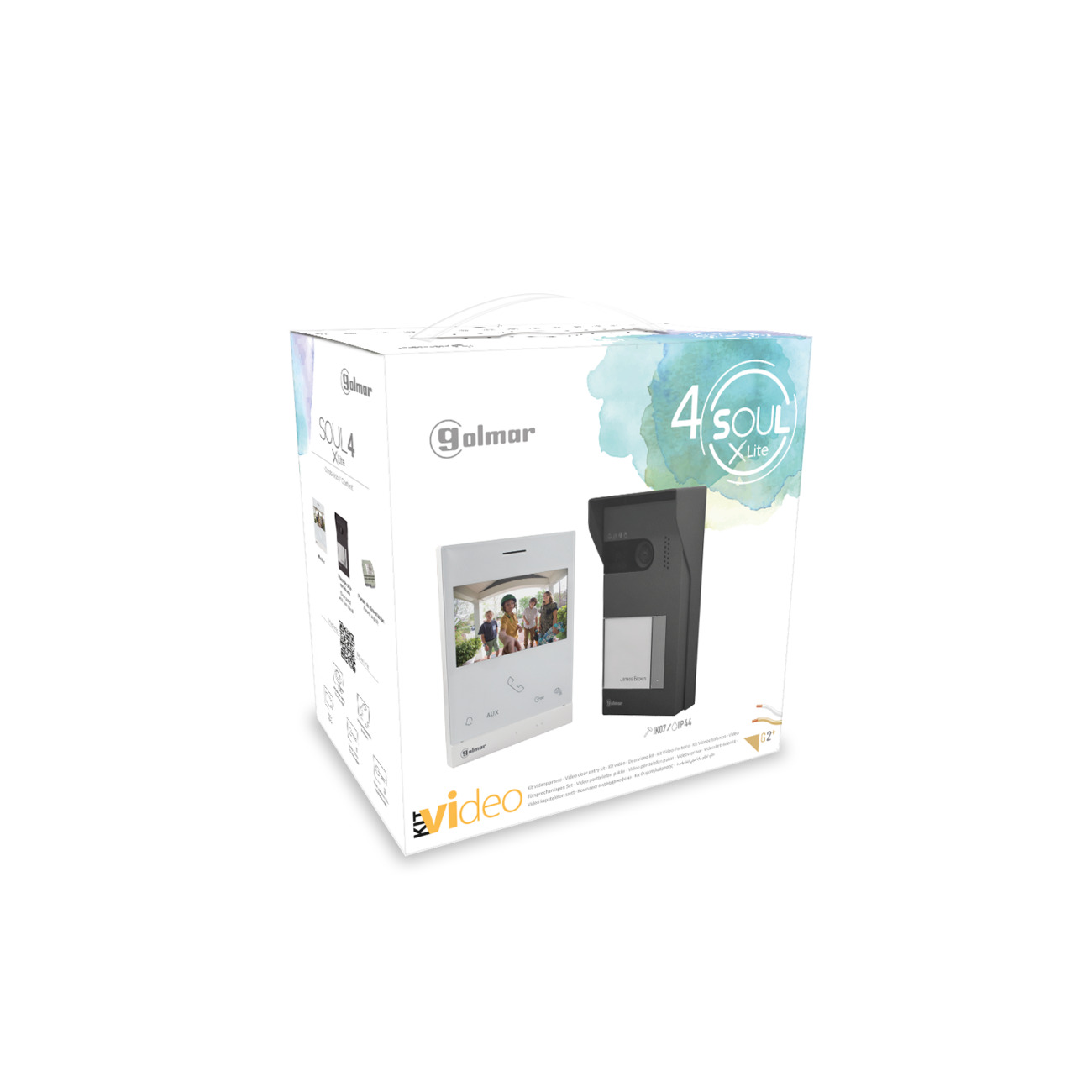

S5110/ART 4 XLITE one line video kit
Reference : S5110/ART 4 XLITE
Product code: 12205115
EAN code : 8429898030234

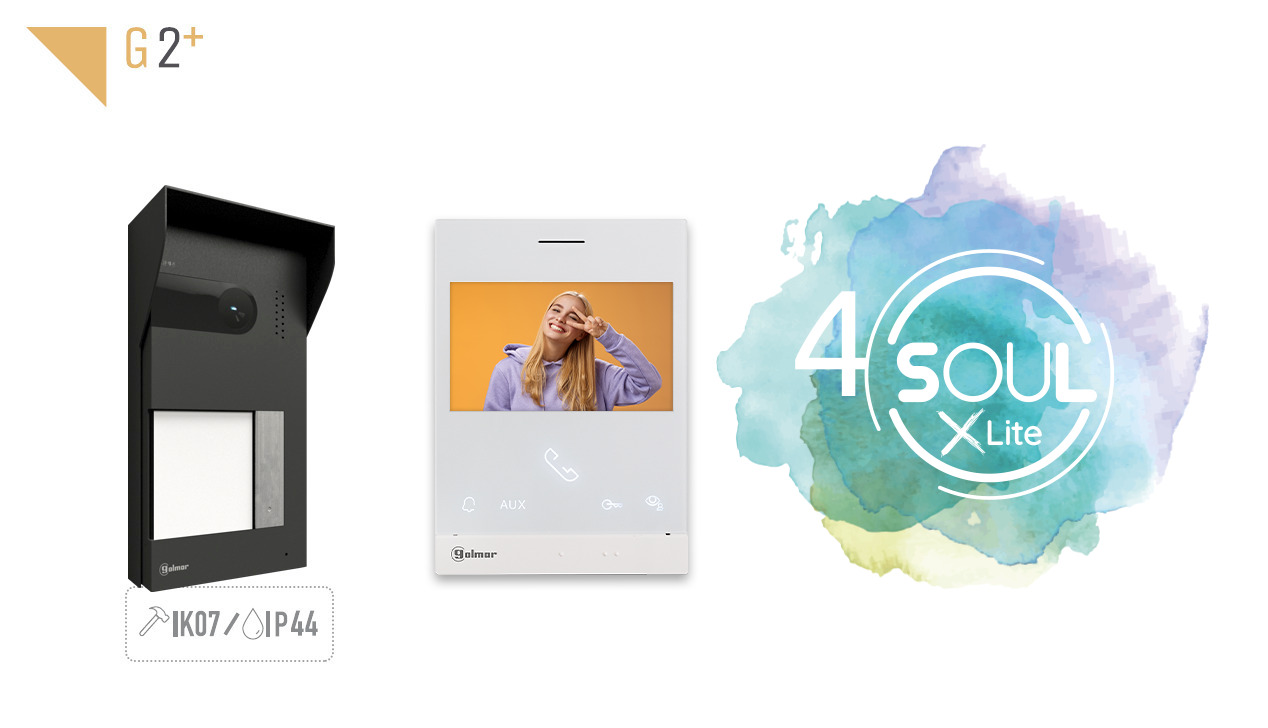

Soul video door panel kit with 2-wire technology.
- SOUL/1 LITE outdoor panel with 1 call button and surface-mounted installation
- Monitor ART 4 XLITE/G2+ 4.3" hands free
- Power supply FA-G2+/LITE
More information
ART 4 XLITE/G2+ MONITOR
Hands-free monitor for surface installation.
4.3" screen with capacitive navigation buttons.
High efficiency loudspeakers.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Personalization of ring tones.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Output to auxiliary call repeater.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same house without additional power.
Power supply FA-G2+/LITE.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
Hands-free monitor for surface installation.
4.3" screen with capacitive navigation buttons.
High efficiency loudspeakers.
Audio communications, video and secret door opening.
Video-spy functions, auto-start, doctor mode and do not disturb.
Intercommunication with other units of the house selectively.
Personalization of ring tones.
Connection to the entrance door pushbutton, which saves the use of the doorbell.
Output to auxiliary call repeater.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same house without additional power.
Power supply FA-G2+/LITE.
Use 12V d.c. lock release (does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
SOUL/1 LITE PANEL
Zamak front in graphite finish
CMOS 120º camera
IK07 anti-vandalism and IP44 weatherproof rating
Auto-start LEDs depending on outdoor lighting
Leds indicate the different states of the system (call in progress, communication, door opening or occupied system)
1 Metallic call button
Secret communication of audio, video and door opening
Relay output for activation of two doors
Connection to analog CCTV camera
Surface installation
VIS-SOUL rain shield is included
Dimensions: 90(W) x 170(H) x 27(D) mm
Zamak front in graphite finish
CMOS 120º camera
IK07 anti-vandalism and IP44 weatherproof rating
Auto-start LEDs depending on outdoor lighting
Leds indicate the different states of the system (call in progress, communication, door opening or occupied system)
1 Metallic call button
Secret communication of audio, video and door opening
Relay output for activation of two doors
Connection to analog CCTV camera
Surface installation
VIS-SOUL rain shield is included
Dimensions: 90(W) x 170(H) x 27(D) mm
